Scene organization guide

How Construct scenes are structured with node types and hierarchies

Last Updated: 2026-10-18

This guide explains how Construct scenes are organized and how different node types work together to create complex 3D shapes.

Node Types

Construct uses a hierarchical scene graph where each node has a specific role:

Primitives

Primitives are the basic building blocks that generate SDF geometry:

Sphere, Box, Torus - Basic shapes
Cylinder, Cone, Capsule - Extended shapes
Rounded Box, Ellipsoid, Octahedron - Specialized shapes
Plane - Infinite ground plane

Each primitive has parameters (diameter, dimensions, etc.) that control its shape.

CSG Operators

CSG (Constructive Solid Geometry) operators combine multiple shapes:

Operator	Effect
Union	Combines shapes (add)
Subtract	Removes second shape from first (carve)
Intersect	Keeps only overlapping parts
Union smooth	Combines with rounded blend
Subtract smooth	Removes with rounded blend
Intersect smooth	Intersects with rounded blend
Union chamfer	Combines with a beveled seam
Subtract chamfer	Removes with a beveled seam
Intersect chamfer	Intersects with a beveled seam

CSG operators accept two or more children.

Transform Operators

Transform operators modify position before evaluating children:

Operator	Effect	Inverse
Translate offset	Move by a vector	Yes
Translate axis	Move a distance along a direction	Yes
Rotate euler	Rotate by Euler angles about a pivot (the origin by default), composed Z, then Y, then X	Yes
Rotate euler XYZ / XZY / YXZ / YZX / ZXY	The same angles composed in another order. An item's rotation mode picks which of the six the scene compiles to	Yes
Rotate axis	Rotate by an angle about an axis through a pivot	Yes
Rotate quaternion	Rotate by a unit quaternion (vector and scalar parts) about a pivot; edited with the Arcball	Yes
Scale uniform	Uniform scaling about a pivot	Yes
Scale per-axis	Per-axis scaling about a pivot (not an exact distance field)	Yes
Mirror axes	Reflect across one or more axes	Yes, to the original copy
Repeat linear	Copy along a line	Yes, to the original copy
Repeat radial	Copy around an axis	Yes, to the original copy
Repeat grid	Copy in a 2D/3D grid	Yes, to the original copy

Transform operators typically accept one child.

The Inverse column says whether the operator ships the function that maps a point back out to the scene. Construct uses it to place a mesh, a camera or another non-SDF child under the operator (see Children without a slot). A repeat or a mirror maps back to the copy it does not move. Bend, domain warp and sweep ship none, and Construct solves those numerically. To write an inverse for your own operator, see Write a transform operator.

Distance Modifiers

Distance modifiers adjust the SDF distance after evaluating children:

Modifier	Effect
Round	Add rounded edges
Onion	Create hollow shell
Elongate	Stretch geometry

Meta items: bounding volumes

Alongside the SDF nodes above, a scene can hold bounding volumes — boxes that frame regions for measurement, cutaway inspection, and export. A volume is a first-class item: named, parametric (center, size and rotation can hold expressions), and it carries independent visible / cutaway / active / locked flags. It contributes no geometry — it never appears in a render or a mesh except as the region boundary.

Parenting sets scope. A volume at the scene root frames the scene; a volume parented under an item follows that item's transform and its fit actions default to that subtree. Moving the parent moves the box. At most one volume per scene is active — the one the cutaway follows and the one an export uses when no volume is named explicitly.

Null objects

A null object is a point in space with no geometry. It shows in the viewport as a small cross of three axis lines, in the axis colors, that keeps its size on the screen. It never appears in a render, an export or a mesh, and "fit to scene" does not count it.

What a null is for is holding other items. Any item can be its child: an SDF shape, a camera, a mesh, a group or another null. Its children move, turn and scale with it. That makes it the joint of a rig: a turntable is a null where the camera looks, the camera as its child, and a rotation of the null driven by an expression (see Make a turntable video).

A null is a group without the group features. It has no Isolated switch, so it is never an SDF domain; Ungroup does not take it apart; and its gizmo always stands on its own origin, where its cross is, not at the middle of its children. Click its cross to select it, or its row in the scene tree.

Scene Hierarchy

Tree Structure

A Construct scene is a tree of nodes:

smooth_union (CSG)
├── sphere_1 (Primitive)
└── translate (Transform)
    └── box_1 (Primitive)

In this example:

The root is a smooth_union operator
It combines a sphere with a translated box
The translate only affects the box, not the sphere

Multiple Children

CSG operators can have any number of children:

union (CSG)
├── sphere_1
├── sphere_2
├── sphere_3
└── box_1

All children are combined with the same operation.

Deep Nesting

Transforms can wrap other transforms or operators:

linear_repeat (Transform)
└── rotate (Transform)
    └── smooth_union (CSG)
        ├── sphere_1
        └── torus_1

This creates repeated copies of a rotated blended shape.

Children without a slot

Any node can hold any other node. A child slot — the children of an operator — only decides whether the parent acts on the child:

Parent	What a child inherits	Is it combined?
CSG operator (union, subtract, …)	The operator's transform	Yes, by the operator
Transform operator	The operator's transform	It is the operand
Primitive (sphere, box, …)	The primitive's translate, rotate and uniform scale	Joined with the parent as a plain union, never cut or blended
Group	The group's translate, rotate and uniform scale	No: each child joins wherever the group itself sits
Null object	The null's translate, rotate and uniform scale	No, as under a group

A primitive and its children count as one shape where the primitive sits. If that primitive is the first operand of a subtraction, its children are part of what is subtracted from, not part of what is cut away.

SDF shapes take a uniform scale only, so a child follows its parent's x scale.

A child that is not an SDF shape inherits less:

Child	Parent	What the child inherits
Mesh, tet volume, camera, bounding volume, reference image	SDF item (primitive or operator)	Position and rotation, through every operator above it. Never scale
Mesh, tet volume, camera, bounding volume, reference image	Group or null object	Position and rotation. Never scale

A transform that an expression drives works the same way: when a group or a null turns with the frame, its children turn with it, in the viewport and in a rendered animation.

Such a child keeps its own size. If Construct cannot place it exactly, its row in the scene tree shows a warning marker (it follows by a slower path) or an error marker (it stays where it was), with the reason in the tooltip.

Working with the Tree View

The tree view is the scene tree over the viewport. Scene Tree Overlay describes it in full.

Adding Nodes

Move the mouse into the gap between two rows, and use a button on the tag at the end of the line that appears. The new node goes where the line is.
Or right-click a row. Add before… adds a node at that row's place. Add child… adds a node under it, on any SDF node, group or SDF domain.

Reparenting

Drag nodes to change their parent. This is useful for:

Moving a primitive into a CSG operator
Wrapping geometry with a transform

To put a node under a new operator in one step, right-click it and choose Wrap in….

Selecting, Hiding and Deleting Nodes

Click a row to select its node. Ctrl-click adds a node to the selection, and Shift-click selects a range.
Click a node's icon, or press Space, to hide the node or show it again. A hidden node stays in the tree.
Select a node and press Delete. Children are also removed.

Ask OPAL to Do It

The assistant reaches the same operations through its tasks:

To	Task
select nodes, so that you can see which ones it means	`construct.scene.set_selection`
read what is selected	`construct.scene.get_selection`
put the selected nodes in a new group, as one undo step	`construct.scene.group_selection`
dissolve a group into its parent, as one undo step	`construct.scene.ungroup`
hide or show a node	`construct.item.set_tags` with the tag `hidden`
read a node, with its place in the scene (`world`) and, for a non-SDF child, whether it could be placed (`leaf`)	`construct.scene.get_item`

See Construct selection and grouping tasks.

Where an imported item came from

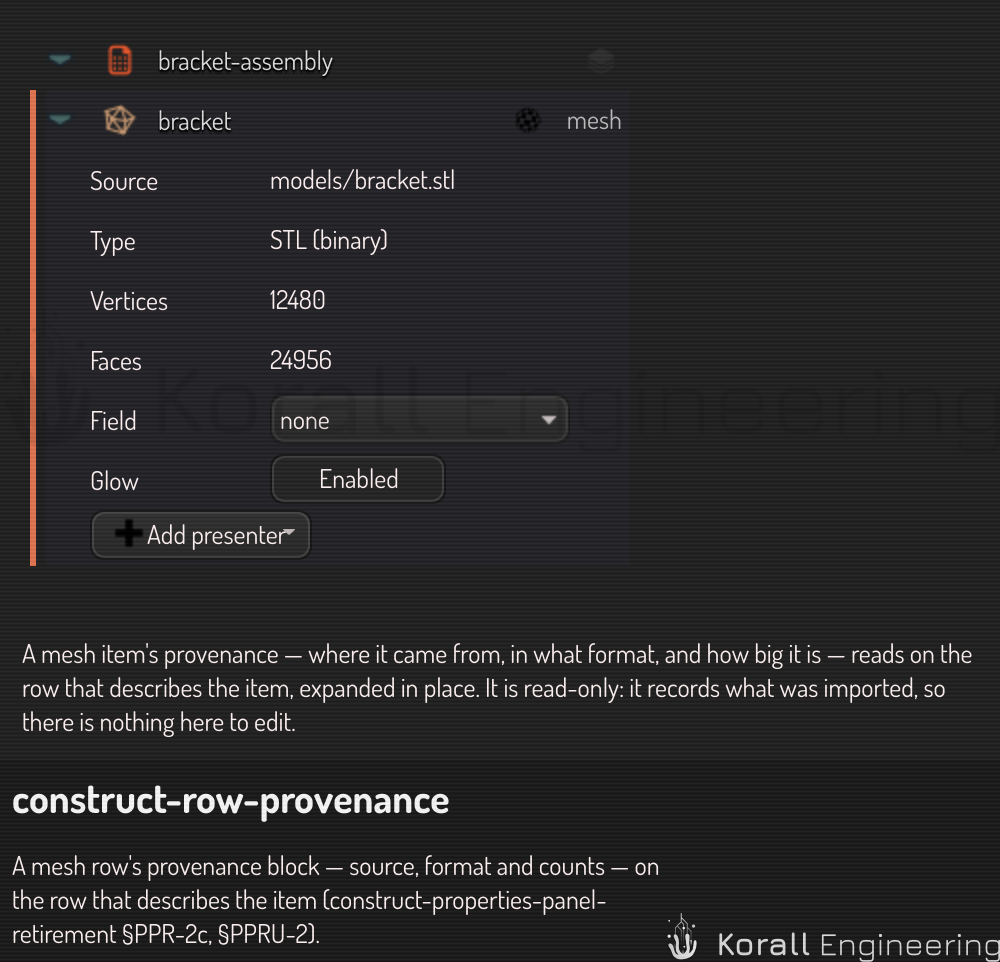

Expanding a mesh or tet-volume row shows its provenance as fact rows: for a mesh, its Source file, its Type, and its Vertices and Faces; for a tet volume, its Source file, its Elements, and for a volume that a bake made, the bake's Resolution. It reads on the row that describes the item rather than in a separate panel, and it is read-only: it records where the item came from, so there is nothing there to edit.

A mesh row expanded to show its source, format and counts

Best Practices

Start Simple

Begin with a single primitive and gradually add complexity:

Add a base shape
Add CSG operations to refine
Add transforms to position and repeat

Use Smooth Operations

Smooth CSG operations (smooth_union, smooth_subtract) create more organic results than their hard-edged equivalents.

Group with Operators

Use CSG operators to logically group related geometry. This makes the scene easier to understand and modify.

Transform at the Right Level

Apply transforms at the appropriate level:

Transform a primitive: affects only that shape
Transform a CSG operator: affects the entire group
