Find and change a setting

Open the settings page, filter, read the marks and change a value

This guide shows how to open the settings page, find a setting with the filter, read what the row tells you, and change the value. The examples use Construct, but the settings page works the same way in every app.

Open the settings page

Press Ctrl+,. In Construct you can also click the gear button in the toolbar.

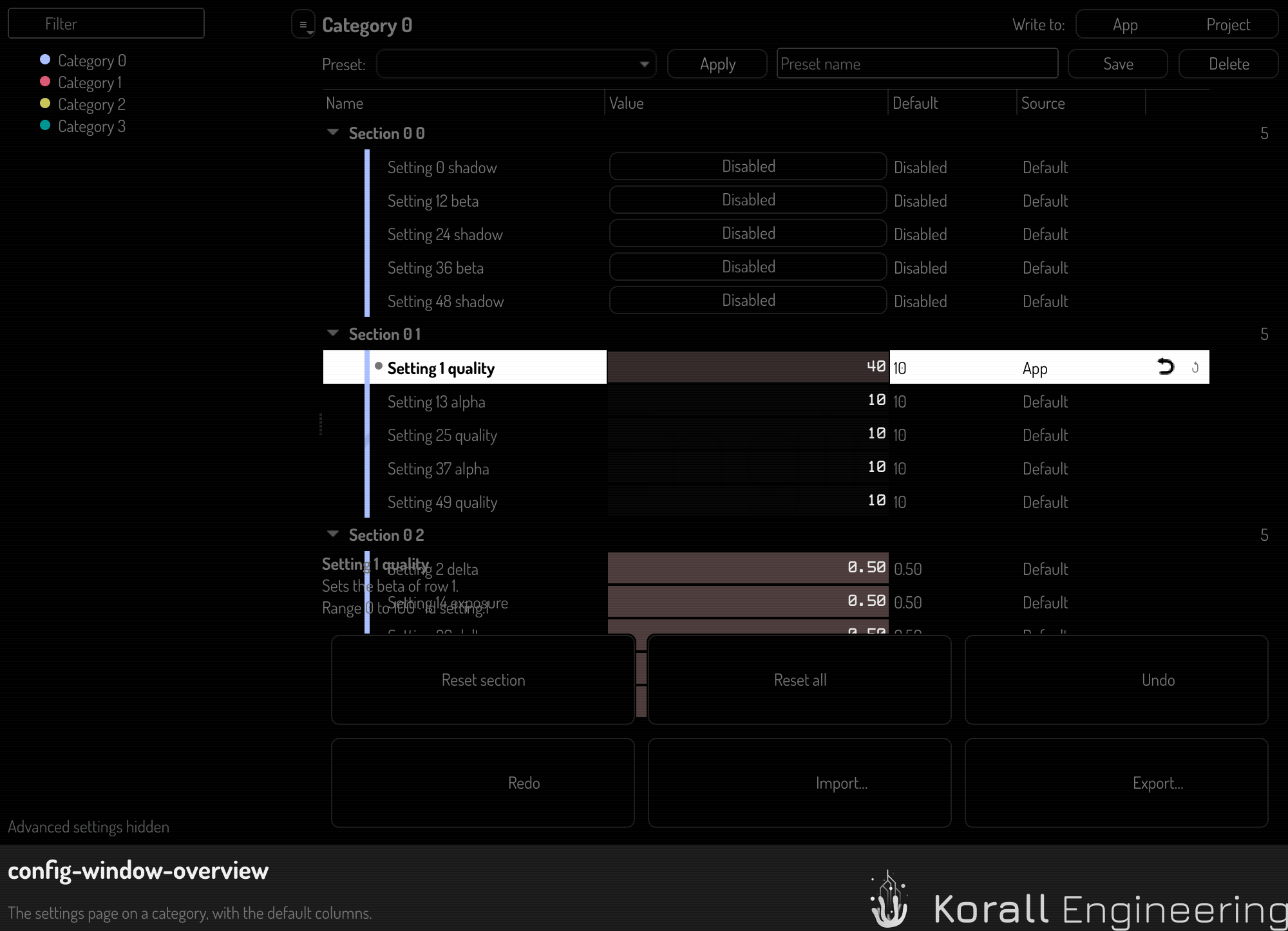

The settings page on one category, with the default columns

The page has four parts:

The category column on the left, with the filter field at its top.
The table on the right, with one row per setting.
The detail strip under the table. It shows the full description, the range, the unit and the id of the selected setting.
The footer with the buttons that act on many settings at once.

The page title names the app, for example Settings — Construct. In Hub, Agent, Remote, Paint and Auda the settings are a page of the app's own window, not a window of their own. The page fills the window. The back arrow in the page header returns to where you were. Construct, Singularity and Bahn, started on their own, open the settings in a window of their own beside the app, so the app stays in view; inside Hub they open as a page of Hub. Each app has ONE settings page, so every app's settings, and OPAL's in the chat's menu, open on the same page.

Two buttons beside the filter fold the page: Expand all opens every category and section, and Collapse all folds them shut. A section inside another section is indented one step further, as its rows are.

Find a setting

Click a category in the left column to show only that category. Or type in the Filter field:

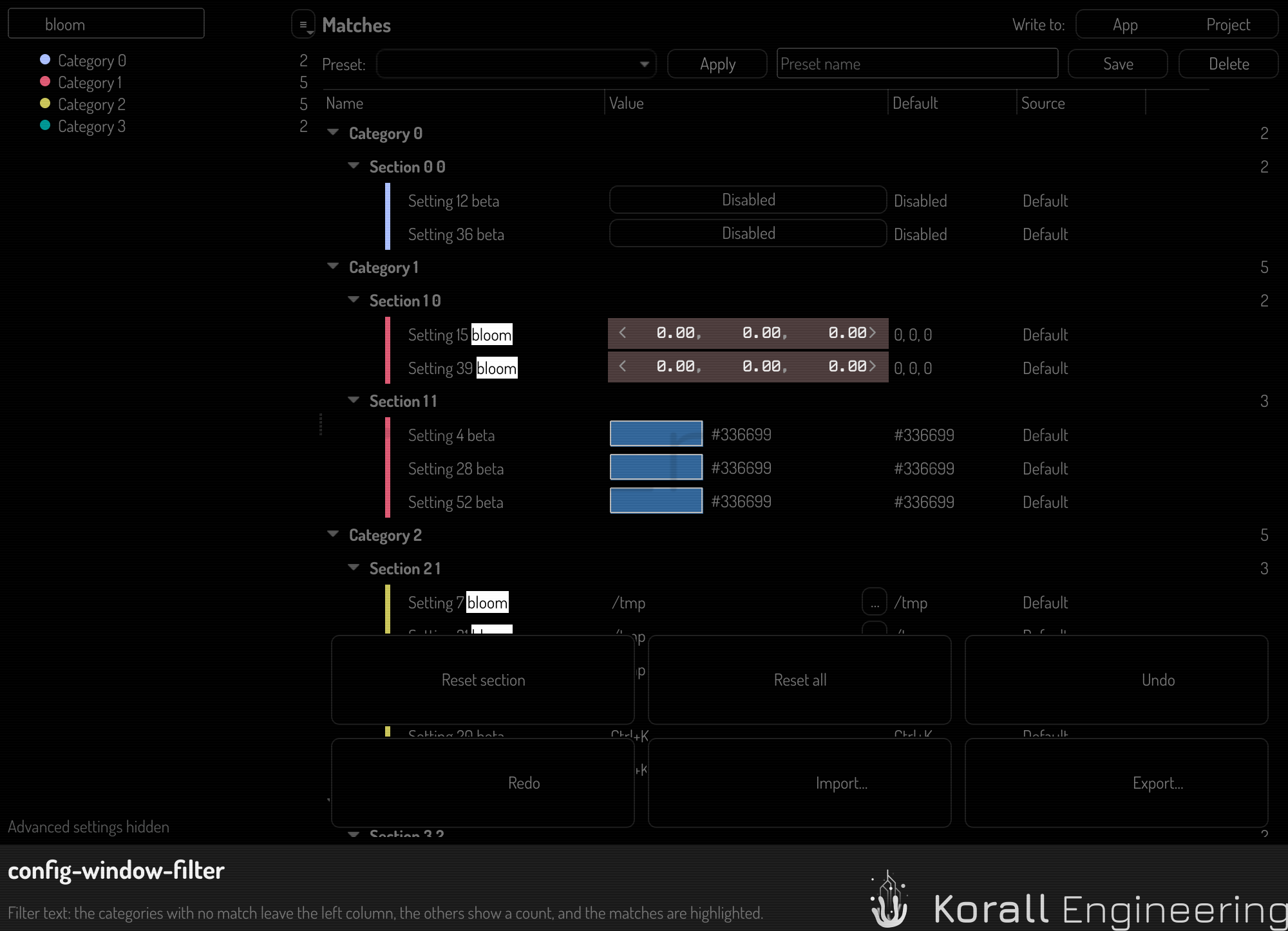

The filter culls the categories and highlights each match

A setting matches when every word you type occurs in its label, its description, its id or its category name. Case does not matter.
The table shows every match from every category, and the matching text is highlighted.
A category with no match leaves the left column. A category with matches shows how many it has.
Click a category while the filter has text to narrow the table to that category. The filter text stays.

The filter responds as you type, so there is nothing to confirm. These keys help:

Key	Does
Ctrl+F	Moves the focus to the filter field
Any letter, outside an editor	Moves the focus to the filter field and types the letter there
Down, in the filter field	Moves the focus to the first match in the table
Esc, in the filter field	Clears the filter. With an empty filter, goes back to where you were

The ≡ button beside the filter has two more choices:

Changed only keeps only the settings that differ from their default. Use it to answer "what did I change?".
Show advanced shows the settings that an app marks as advanced. Until you check it, the filter does not find them, and the left column says Advanced settings hidden.

Read a row

A row tells you more than its value. Each mark below has a second sign that does not depend on color.

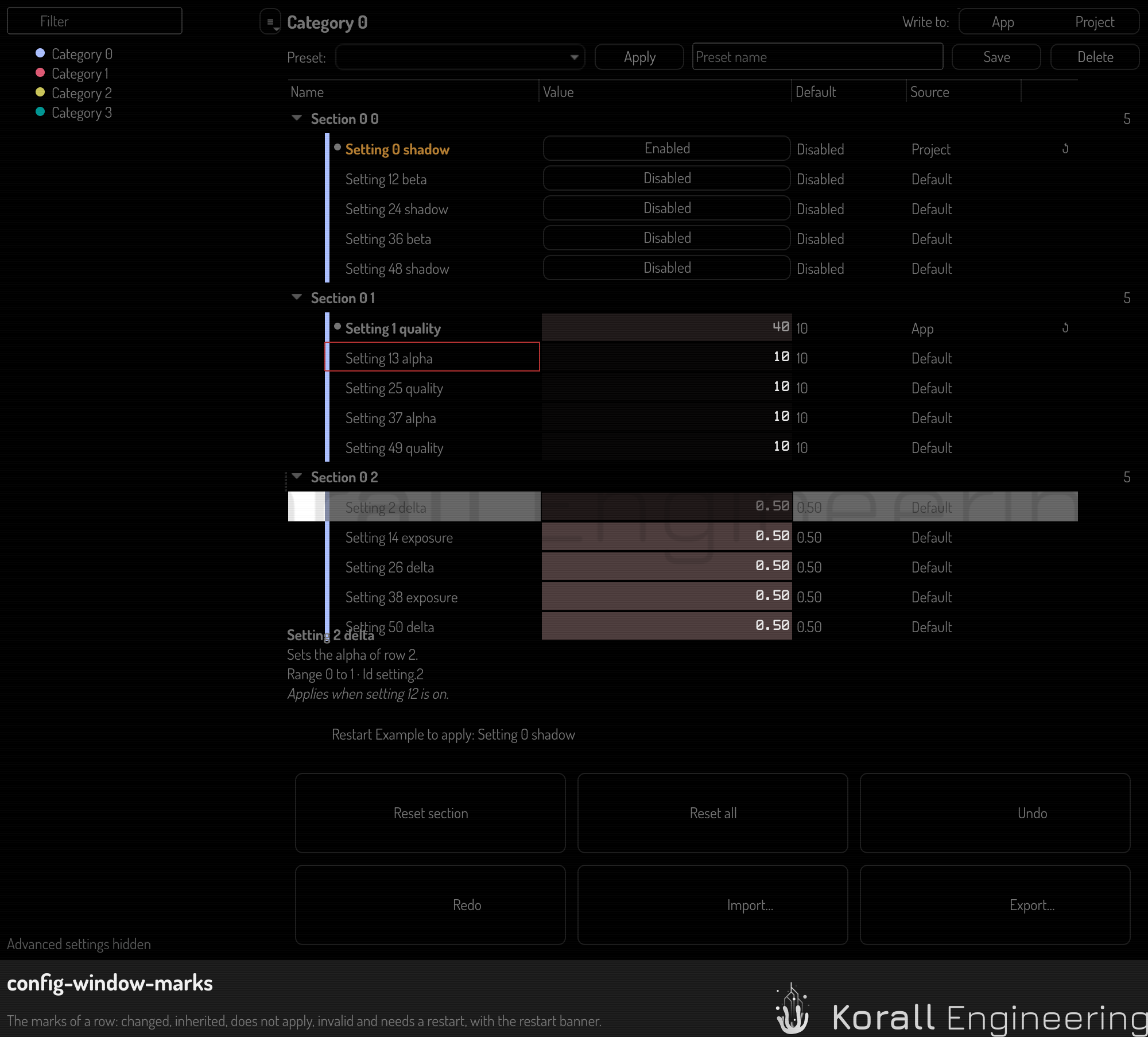

Changed, inherited, not applicable, invalid and restart rows, with the restart banner

What you see	What it means
The name in bold, with a dot before it	The value differs from its default. The Default column shows the default
The value dimmed	The value comes from another level. The Source column names that level
The whole row dimmed	The setting does not apply right now, for example a gradient color while the background is flat. You can still change it. The detail strip says why it does not apply
A border in the danger color, and a warning icon	The stored value is not valid. The detail strip says what is wrong
The name in the warning color, and a banner at the bottom	The app applies the change only after a restart. See Reset, revert and undo

The colored stripe at the left of a name shows the category the setting belongs to.

Change a value

Each kind of value has its own input. A change applies at once. There is no Apply button and no Cancel button.

Kind	Mouse	Keyboard
Number	Drag left or right to change it. Click to type a value	Enter opens the editor. Up and Down step
Yes or no	Click to switch between Enabled and Disabled	Space switches
List	Click to open the list	Enter opens the list
Color	Click the swatch to open the color picker	Enter opens the picker
Text, file or folder	Click to type. The browse button opens a file dialog	Enter opens the editor
Action, such as Regenerate all thumbnails	Click the button	Space calls it

Use Up and Down to move between rows. The mouse wheel scrolls the table. It changes a value only in the cell you are editing, so you cannot change a setting by accident while you scroll.

Some settings have hard limits, for example a share that must stay between 0.05 and 1. If you type a value outside such a limit, the page refuses it, the old value stays, and the detail strip says why.

Choose where the value goes

Some apps keep a setting at more than one level. Construct, for example, has a value for new scenes, a value for the open scene, and a value for one camera. In such an app, Write to above the table chooses the level that your next change writes to.

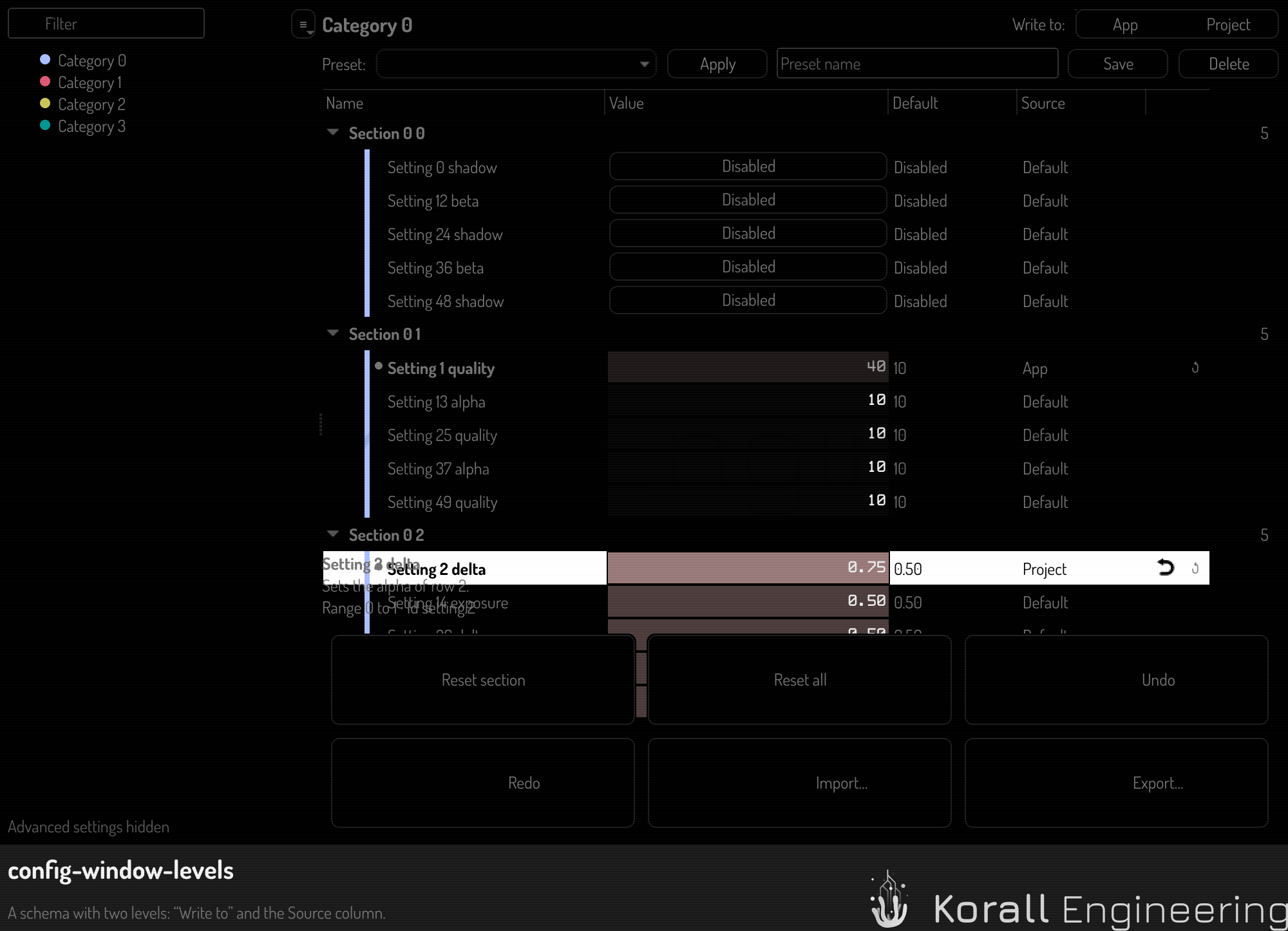

A schema with two levels, with Write to and the Source column

A value that is set at the chosen level shows at full strength, and the revert button shows beside it.
A value that is set at a lower level shows dimmed, and the Source column names that level.
A change writes at the chosen level, so the value is then set there.
A setting that the chosen level cannot hold shows its value, but you cannot edit it. Choose a level that can hold it.

An app with one level shows no Write to and no Source column. For the levels of Construct, see Where Construct settings live.

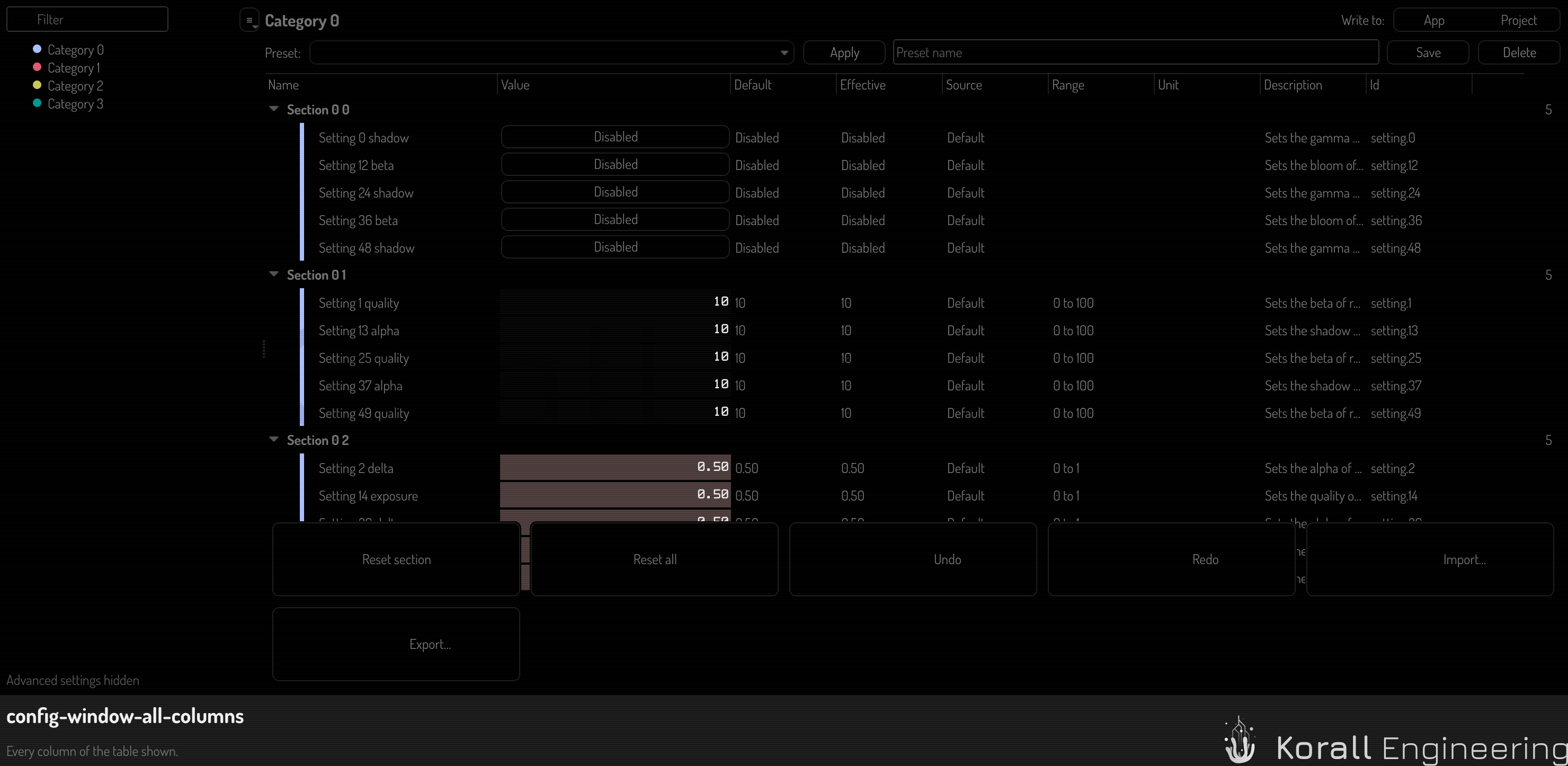

Show more columns

Name, Value, Default and the reset buttons show by default. Source shows by default in an app with more than one level.

Right-click a column header.
Check the columns you want: Effective, Source, Range, Unit, Description or Id.
Drag the edge of a header to make a column wider or narrower.

To go back to the default columns, right-click a header and click Reset columns. The page remembers the columns for each app.

Effective shows the value the app uses now, through every level. It differs from Value only when a higher level overrides the level you chose, for example a camera that overrides the scene.
