StackedAreaChartWidget

Stacked filled-area time chart for memory, filesystem, and I/O

Properties

  • ID: StackedAreaChartWidget
  • Path: components/monitor/StackedAreaChartWidget
  • Tags: monitor, chart, memory, stacked, area, visualization
  • Modes: memory, io, gap

Modes

memory

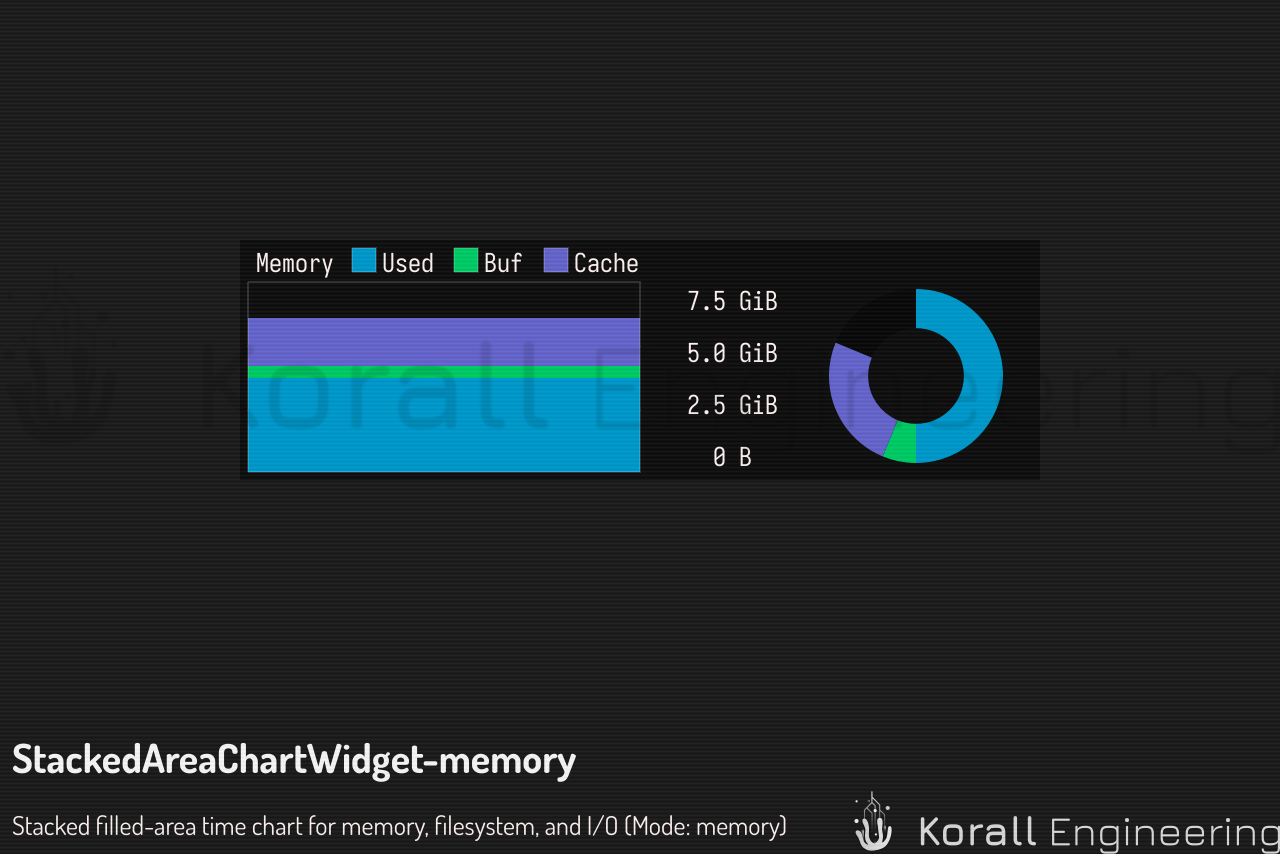

StackedAreaChartWidget in memory mode
StackedAreaChartWidget in memory mode

io

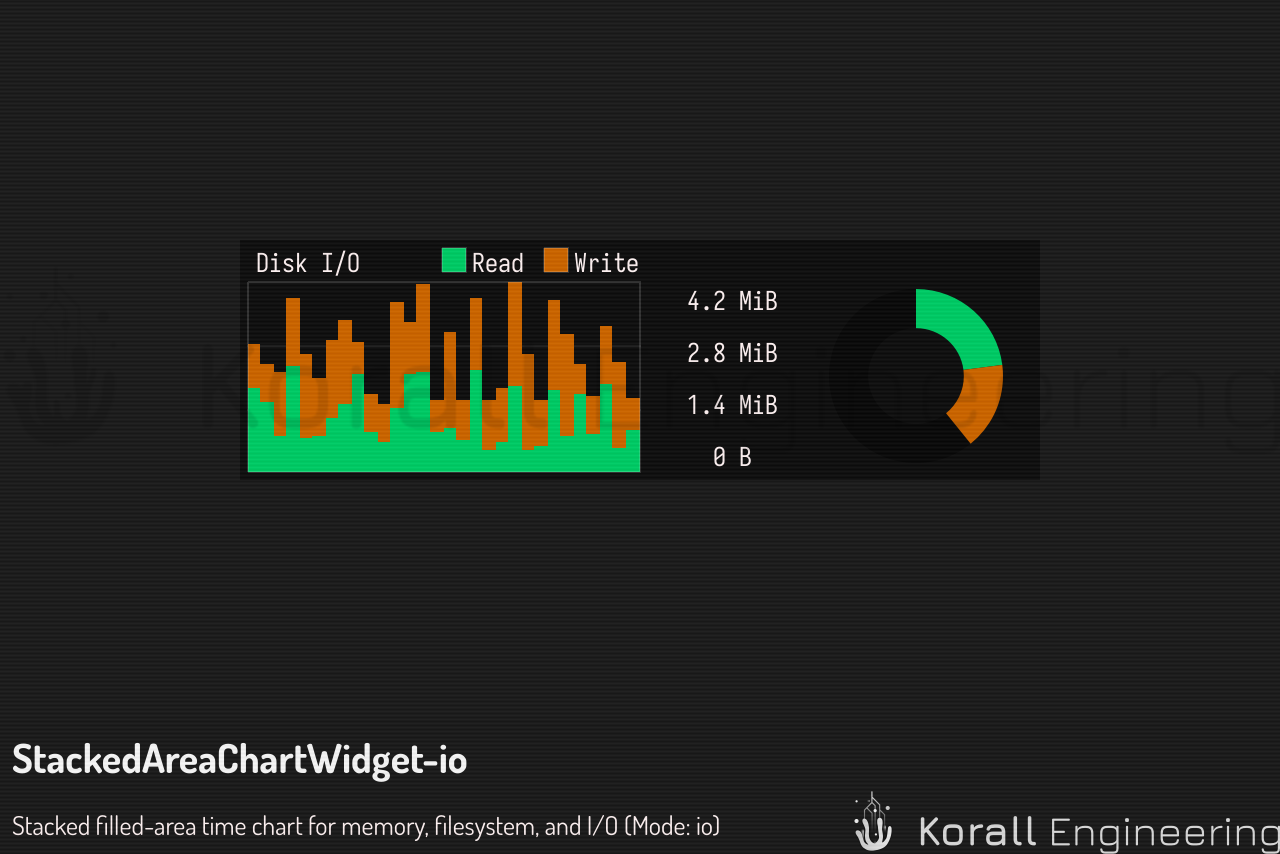

StackedAreaChartWidget in io mode
StackedAreaChartWidget in io mode

gap

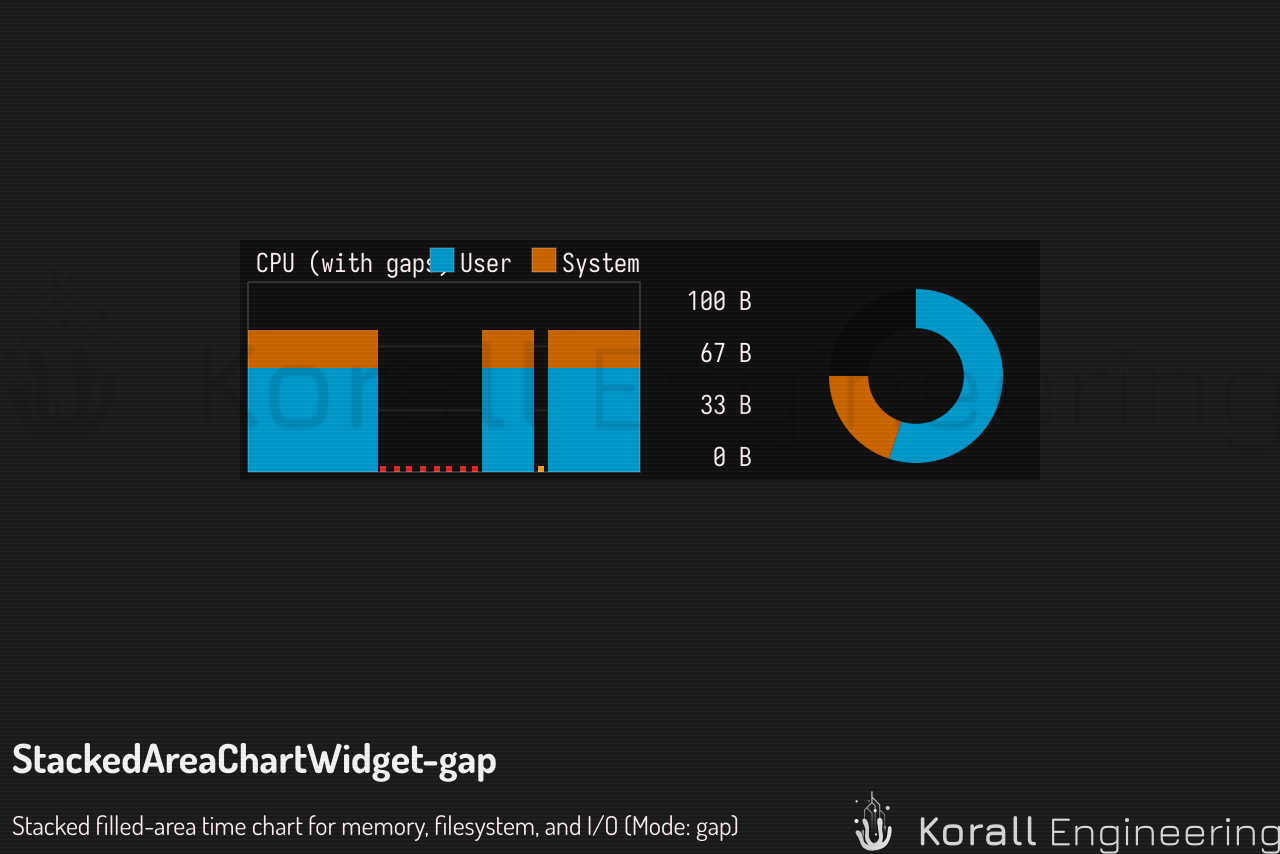

StackedAreaChartWidget in gap mode
StackedAreaChartWidget in gap mode
