HeatmapWidget

Core-by-time heatmap with current-value bars (cool-to-hot color scale)

Properties

  • ID: HeatmapWidget
  • Path: components/monitor/HeatmapWidget
  • Tags: monitor, heatmap, cpu, gpu, visualization
  • Modes: default, high_load

Modes

default

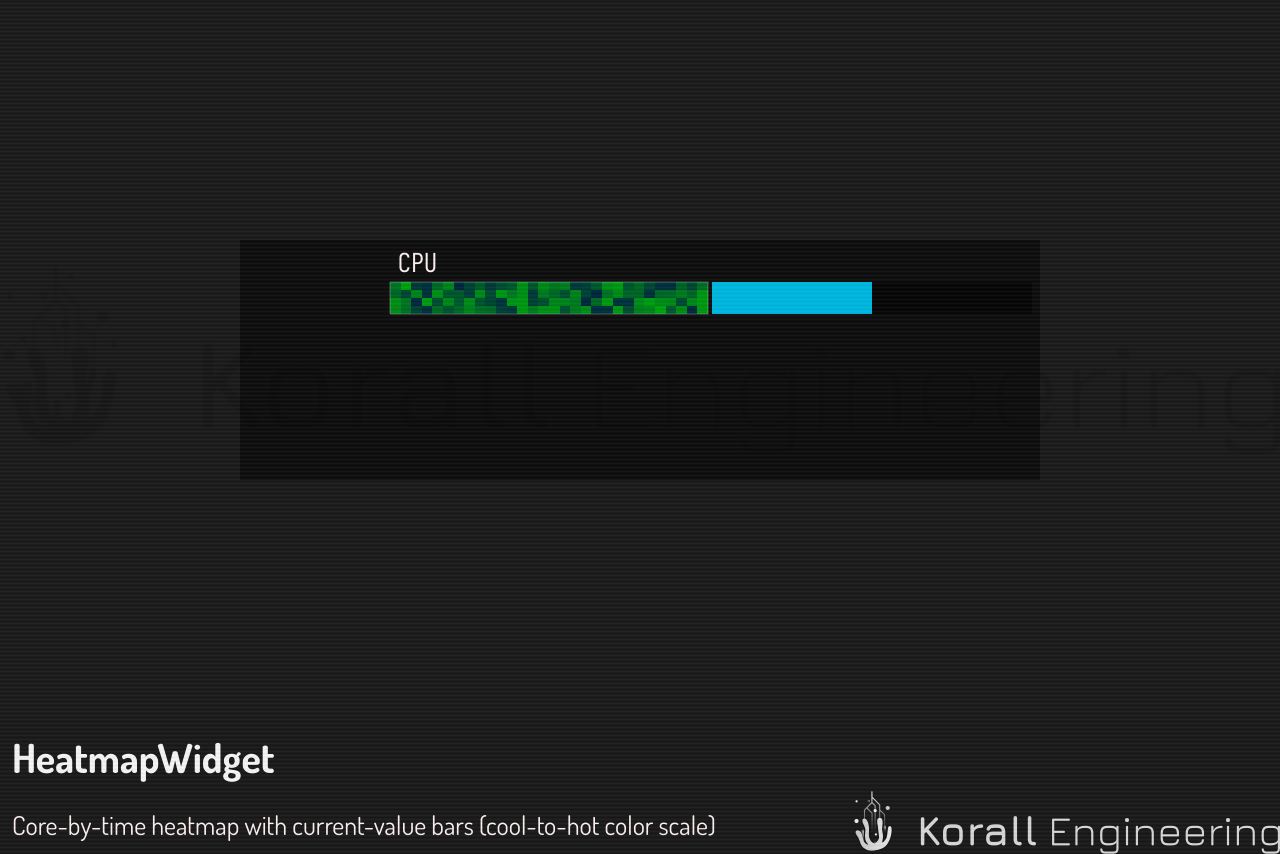

HeatmapWidget in default mode
HeatmapWidget in default mode

high_load

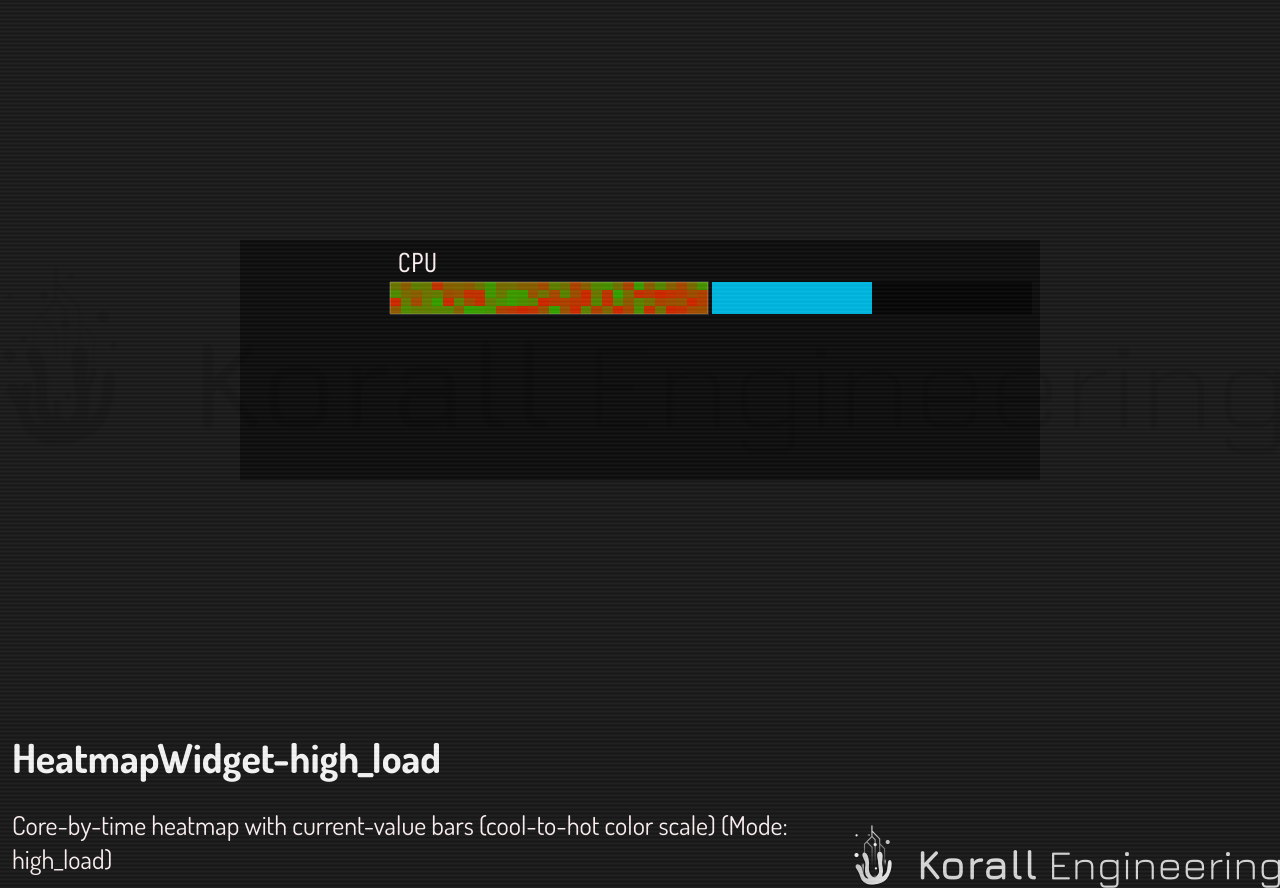

HeatmapWidget in high_load mode
HeatmapWidget in high_load mode
